Product overview

Minilinear - miniround

Minilinear full glass
Minilinear stainless front trim 50cm
Minilinear stainless front trim 100cm
Miniround full glass
Filters
Rated luminaire luminous flux (lm):
475 lm - 2617 lm X
Colour temperature:
Tipo Control type:
Standard beams:
Number of products found: 30
Reset
dimensions

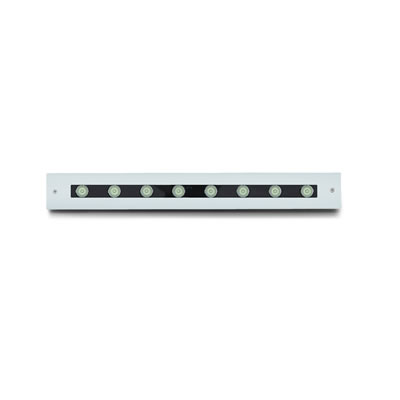

MINILINEAR FULL GLASS
TRANSPARENT GLASSS LED
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5485N 29° 13.6W 1038lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5485W 29° 13.6W 989lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5485H 29° 13.6W 940lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
Beam lenses available on request with no surcharge: 7°, 39°
dimensions

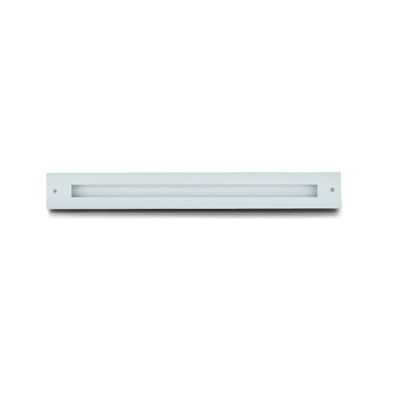

MINILINEAR FULL GLASS
ACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5488N 87°x53° 9.1W 536lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5488W 87°x53° 9.1W 500lm LED 3000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5488H 87°x53° 9.1W 475lm LED 2700K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) TV
dimensions

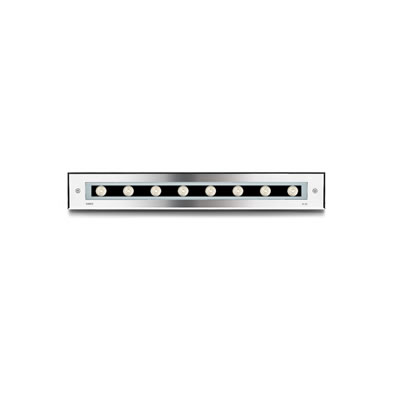

MINILINEAR STAINLESS FRONT TRIM 50cm
TRANSPARENT GLASSS LED
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5495N 29° 13.6W 1038lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5495W 29° 13.6W 989lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5495H 29° 13.6W 940lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
Beam lenses available on request with no surcharge: 7°, 39°
dimensions
MINILINEAR STAINLESS FRONT TRIM 50cm
TRANSPARENT GLASSS LED
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5494N Asy 14W 1310lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5494W Asy 14W 1248lm LED 3000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5494H Asy 14W 1186lm LED 2700K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .19
dimensions

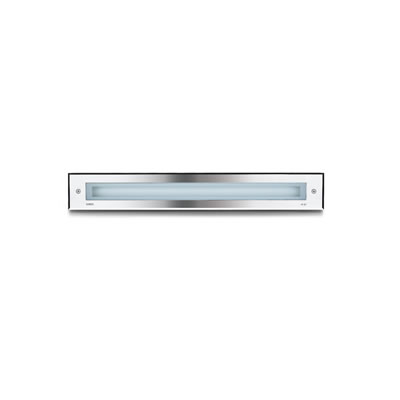

MINILINEAR STAINLESS FRONT TRIM 50cm
ACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5498N 87°x53° 9.1W 536lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5498W 87°x53° 9.1W 500lm LED 3000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5498H 87°x53° 9.1W 475lm LED 2700K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .19
dimensions

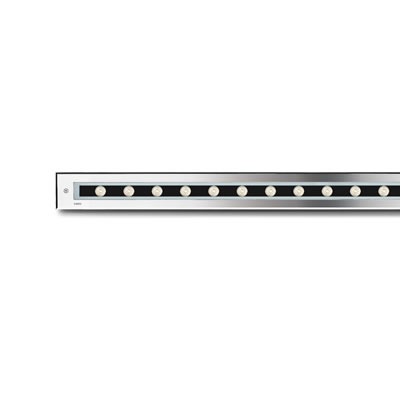

MINILINEAR STAINLESS FRONT TRIM 100cm
TRANSPARENT GLASSS LED
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5475N 29° 31.7W 2617lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.5475W 29° 31.7W 2492lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.5475H 29° 31.7W 2360lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
Beam lenses available on request with no surcharge: 7°, 39°
dimensions
MINILINEAR STAINLESS FRONT TRIM 100cm
TRANSPARENT GLASSS LED
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5474N Asy 28W 2585lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.5474W Asy 28W 2462lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .19
S.5474H Asy 28W 2340lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .19
dimensions

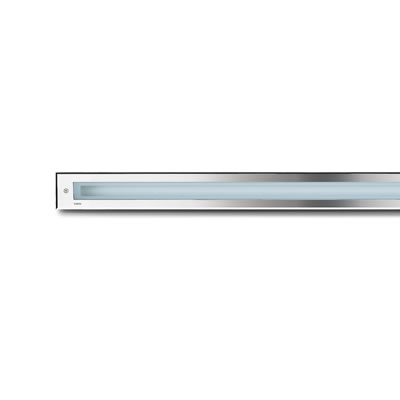

MINILINEAR STAINLESS FRONT TRIM 100cm
ACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5478N 87°x51° 14.3W 842lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.5478W 87°x51° 14.3W 802lm LED 3000K CRI 80 220-240Vac DALI2; PUSH .19
S.5478H 87°x51° 14.3W 762lm LED 2700K CRI 80 220-240Vac DALI2; PUSH .19
dimensions

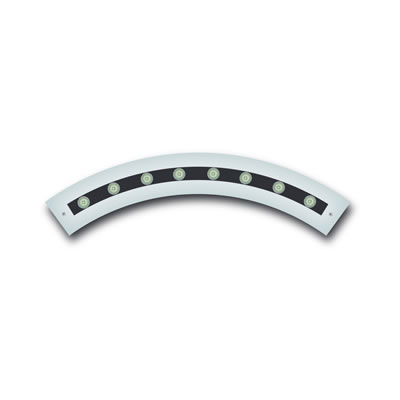

MINIROUND FULL GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5400N 29° 13.6W 1038lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5400W 29° 13.6W 989lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5400H 29° 13.6W 940lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
Beam lenses available on request with no surcharge: 7°, 39°
dimensions

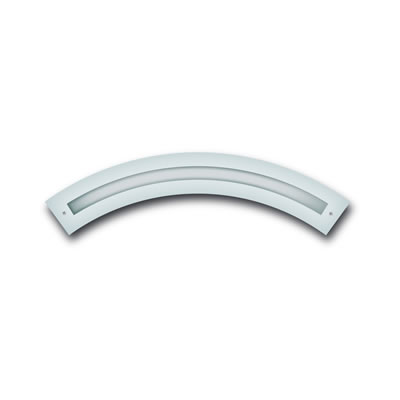

MINIROUND FULL GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5402N 87°x53° 9.1W 536lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5402W 87°x53° 9.1W 500lm LED 3000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5402H 87°x53° 9.1W 475lm LED 2700K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) TV
