Home / Products / Versions Stage round /
Product overview

Stage round

Microstage round spot
Ministage round spot
Ministage round spot rgbw
Stage round spot
Stage round spot digital beam
Stage round spot rgbw
Megastage round spot
Megastage round spot rgbw
Microstage round spot arm
Ministage round spot arm
Ministage round spot arm rgbw
Stage round spot arm
Stage round spot arm rgbw
Filters
Rated luminaire luminous flux (lm):
180 lm - 6232 lm X
Colour temperature:
Power supply:
Tipo Control type:
Standard beams:
Standard colours:
Number of products found: 65
Reset
dimensions
MICROSTAGE ROUND SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1300N 12° 3.7W 200lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1300W 12° 3.7W 190lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1300H 12° 3.7W 180lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Beam lenses available on request with no surcharge: 65°
Colours on request with surchage: .01.07.09.20
dimensions
MICROSTAGE ROUND SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1305N 34° 4.3W 293lm COB 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1305W 34° 4.3W 284lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1305H 34° 4.3W 269lm COB 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Colours on request with surchage: .01.07.09.20
dimensions
MINISTAGE ROUND SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1310N 12° 10.1W 670lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1310W 12° 10.1W 651lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1310H 12° 10.1W 618lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Beam lenses available on request with no surcharge: 65°, 10°x44°
Colours on request with surchage: .01.07.09.20
dimensions
MINISTAGE ROUND SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1315N 27° 11.2W 1092lm COB 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1315W 27° 11.2W 1040lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1315H 27° 11.2W 988lm COB 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1316N 58° 11.2W 1118lm COB 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1316W 58° 11.2W 1074lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1316H 58° 11.2W 1020lm COB 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Colours on request with surchage: .01.07.09.20
dimensions
MINISTAGE ROUND SPOT RGBW
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1313 34° 8.1W 192lm LED RGBW (W=3000K) 24Vdc PWM .14.24
Colours on request with surchage: .01.07.09.20
dimensions

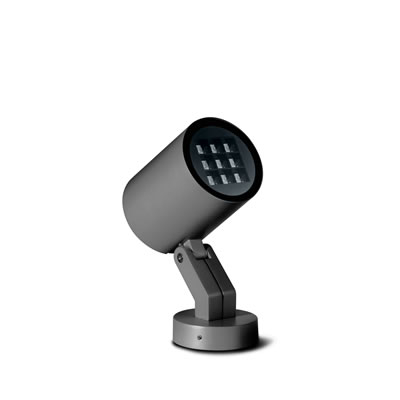

STAGE ROUND SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1320N 13° 26.6W 2109lm LED 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .14.24
S.1320W 13° 26.6W 1947lm LED 3000K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
S.1320H 13° 26.6W 1785lm LED 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
Beam lenses available on request with no surcharge: 65°, 10°x44°
Colours on request with surchage: .01.07.09.20
dimensions

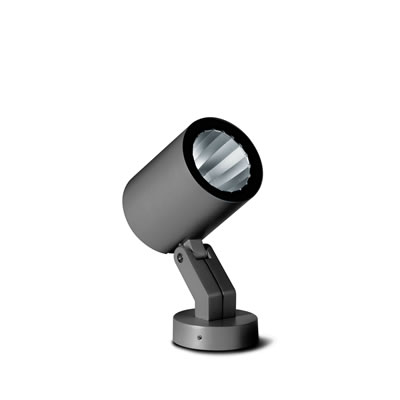

STAGE ROUND SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1325N 29° 36.1W 3066lm COB 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .14.24
S.1325W 29° 36.1W 3020lm COB 3000K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
S.1325H 29° 36.1W 2905lm COB 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
S.1326N 58° 36.1W 3372lm COB 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .14.24
S.1326W 58° 36.1W 3118lm COB 3000K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
S.1326H 58° 36.1W 2962lm COB 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
dimensions

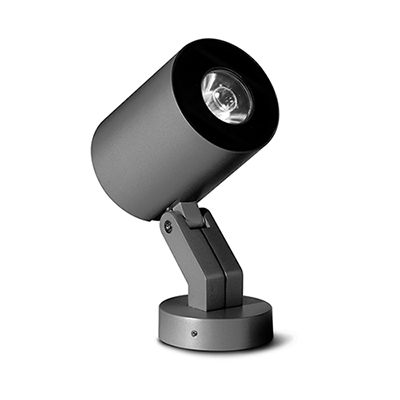

STAGE ROUND SPOT DIGITAL BEAM
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1327N 10°-49° 16.4W 954lm COB 4000K CRI 90 48Vdc DALI .14.24
S.1327W 10°-49° 16.4W 909lm COB 3000K CRI 90 48Vdc DALI .14.24
S.1327H 10°-49° 16.4W 864lm COB 2700K CRI 90 48Vdc DALI .14.24
Colours on request with surchage: .01.07.09.20
dimensions

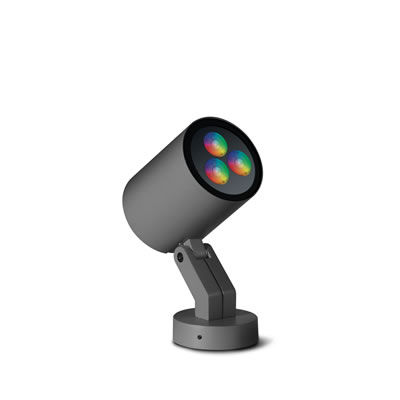

STAGE ROUND SPOT RGBW
230V DMX
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1323 34° 23.9W 892lm LED RGBW (W=3000K) 24Vdc PWM .14.24
Colours on request with surchage: .01.07.09.20
dimensions
MEGASTAGE ROUND SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1360N 14° 53.2W 4815lm LED 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .14.24
S.1360W 14° 53.2W 3947lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1360H 14° 53.2W 3631lm LED 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
Beam lenses available on request with no surcharge: 65°, 10°x44°
Colours on request with surchage: .01.07.09.20
dimensions
MEGASTAGE ROUND SPOT
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1365N 30° 62W 6123lm COB 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1365W 30° 62W 5945lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1365H 30° 62W 5647lm COB 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
S.1366N 58° 62W 6232lm COB 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .14.24
S.1366W 58° 62W 6051lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1366H 58° 62W 5748lm COB 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
dimensions
MEGASTAGE ROUND SPOT RGBW
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1363 34° 46W 1564lm LED RGBW (W=3000K) -- DMX .14.24
Colours on request with surchage: .01.07.09.20
dimensions
MICROSTAGE ROUND SPOT ARM
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1330N 12° 3.7W 200lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1330W 12° 3.7W 190lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1330H 12° 3.7W 180lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Beam lenses available on request with no surcharge: 65°
Colours on request with surchage: .01.07.09.20
dimensions
MICROSTAGE ROUND SPOT ARM
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1335N 34° 4.3W 293lm COB 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1335W 34° 4.3W 284lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1335H 34° 4.3W 269lm COB 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Colours on request with surchage: .01.07.09.20
dimensions
MINISTAGE ROUND SPOT ARM
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1340N 12° 10.1W 670lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1340W 12° 10.1W 651lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1340H 12° 10.1W 618lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Beam lenses available on request with no surcharge: 65°, 10°x44°
Colours on request with surchage: .01.07.09.20
dimensions
MINISTAGE ROUND SPOT ARM
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1345N 27° 11.2W 1092lm COB 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1345W 27° 11.2W 1040lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1345H 27° 11.2W 988lm COB 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1346N 58° 11.2W 1118lm COB 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1346W 58° 11.2W 1074lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1346H 58° 11.2W 1020lm COB 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
Colours on request with surchage: .01.07.09.20
dimensions
MINISTAGE ROUND SPOT ARM RGBW
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1343 34° 8.1W 192lm LED RGBW (W=3000K) 24Vdc PWM .14.24
Colours on request with surchage: .01.07.09.20
dimensions
STAGE ROUND SPOT ARM
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1350N 13° 26.6W 2109lm LED 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .14.24
S.1350W 13° 26.6W 1947lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1350H 13° 26.6W 1785lm LED 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
Beam lenses available on request with no surcharge: 65°, 10°x44°
Colours on request with surchage: .01.07.09.20
dimensions
STAGE ROUND SPOT ARM
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1355N 29° 36.1W 3066lm COB 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .14.24
S.1355W 29° 36.1W 3020lm COB 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .14.24
S.1355H 29° 36.1W 2905lm COB 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
S.1356N 58° 36.1W 3372lm COB 4000K CRI 80 220-240Vac DALI; DALI2; PUSH .14.24
S.1356W 58° 36.1W 3118lm COB 3000K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
S.1356H 58° 36.1W 2962lm COB 2700K CRI 90 220-240Vac DALI; DALI2; PUSH .14.24
Colours on request with surchage: .01.07.09.20
dimensions
STAGE ROUND SPOT ARM RGBW
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.1353 34° 23.9W 892lm LED RGBW (W=3000K) 24Vdc PWM .14.24
Colours on request with surchage: .01.07.09.20
The range
STAGE ROUND is available in different versions and applications.
Access to the code list of the type of your interest.
