Stage ceiling
Rated luminaire luminous flux (lm):
269 lm - 6232 lm
X
Colour temperature:
Power supply:
Tipo Control type:
Standard beams:
Standard colours:
Number of products found: 24

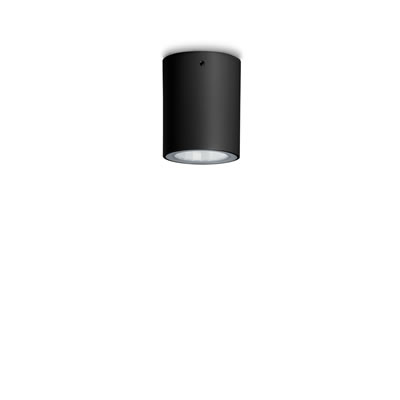

MICROSTAGE CEILING
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.1405N |  |
34° | 4.3W | 293lm | COB 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
| S.1405W | |
34° | 4.3W | 284lm | COB 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
| S.1405H | |
34° | 4.3W | 269lm | COB 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
Colours on request with surchage: .07.20.24

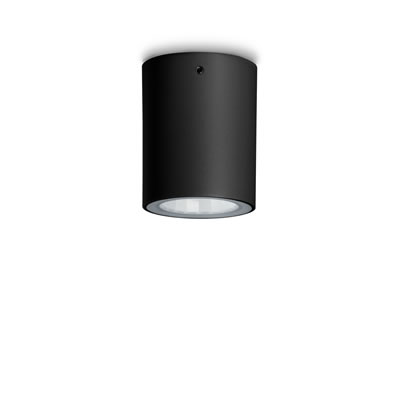

MINISTAGE CEILING
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.1415N |  |
28° | 11.5W | 1230lm | COB 4000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
| S.1415W | |
28° | 11.5W | 1224lm | COB 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
| S.1415H | |
28° | 11.5W | 1200lm | COB 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
| S.1416N |  |
52° | 11.5W | 1262lm | COB 4000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
| S.1416W | |
52° | 11.5W | 1256lm | COB 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
| S.1416H | |
52° | 11.5W | 1231lm | COB 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.09.14 |
Colours on request with surchage: .07.20.24

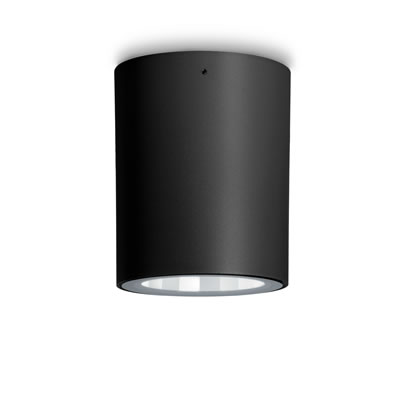

STAGE CEILING
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.1425N |  |
30° | 37W | 3146lm | COB 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1425W | |
30° | 37W | 3095lm | COB 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1425H | |
30° | 37W | 2940lm | COB 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1426N |  |
58° | 37W | 3372lm | COB 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1426W | |
58° | 37W | 3318lm | COB 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1426H | |
58° | 37W | 3152lm | COB 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
Colours on request with surchage: .07.20.24

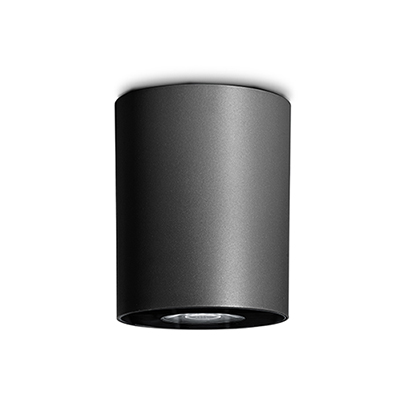

STAGE CEILING DIGITAL BEAM
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.1427N |  |
10°-49° | 16.4W | 954lm | COB 4000K CRI 90 | 48Vdc | DALI | .14.24 |
| S.1427W | |
10°-49° | 16.4W | 909lm | COB 3000K CRI 90 | 48Vdc | DALI | .14.24 |
| S.1427H | |
10°-49° | 16.4W | 864lm | COB 2700K CRI 90 | 48Vdc | DALI | .14.24 |
Colours on request with surchage: .01.07.09.20

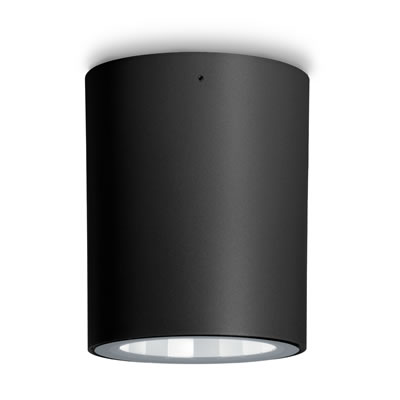

MEGASTAGE CEILING
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.1435N |  |
30° | 62W | 6123lm | COB 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1435W | |
30° | 62W | 5945lm | COB 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1435H | |
30° | 62W | 5647lm | COB 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1436N |  |
60° | 62W | 6232lm | COB 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1436W | |
60° | 62W | 6051lm | COB 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
| S.1436H | |
60° | 62W | 5748lm | COB 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .01.09.14 |
Colours on request with surchage: .07.20.24
