Slot round
Rated luminaire luminous flux (lm):
430 lm - 5222 lm
X
Colour temperature:
Tipo Control type:
Standard beams:
Standard colours:
Number of products found: 18

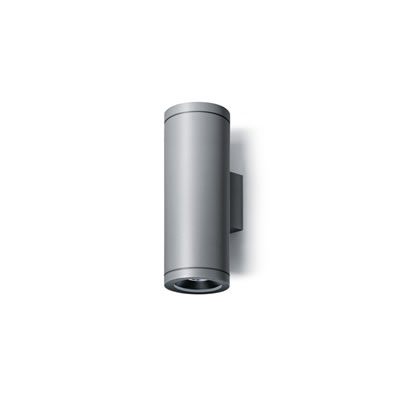

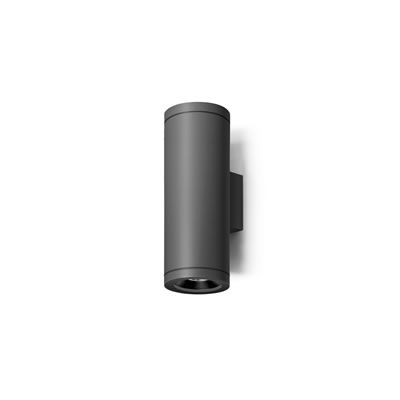

MICROSLOT
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3814N |  |
31° | 8.8W | 483lm | COB 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3814W | |
31° | 8.8W | 452lm | COB 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3814H | |
31° | 8.8W | 430lm | COB 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
Colours on request with surchage: .01.07.09.20
MICROSLOT UP-DOWN
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3815N |  |
31° | 15.3W | 929lm | COB 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3815W | |
31° | 15.3W | 904lm | COB 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3815H | |
31° | 15.3W | 866lm | COB 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
Colours on request with surchage: .01.07.09.20

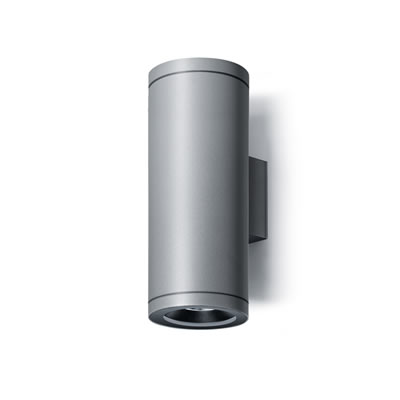

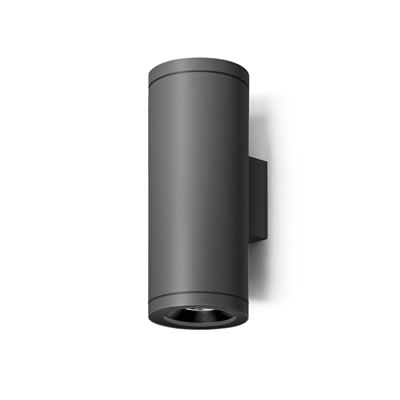

MINISLOT
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3824N |  |
25° | 18.6W | 1238lm | COB 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3824W | |
25° | 18.6W | 1203lm | COB 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3824H | |
25° | 18.6W | 1142lm | COB 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
Colours on request with surchage: .01.07.09.20
MINISLOT UP-DOWN
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3825N |  |
25° | 37W | 2476lm | COB 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3825W | |
25° | 37W | 2404lm | COB 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3825H | |
25° | 37W | 2284lm | COB 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
Colours on request with surchage: .01.07.09.20

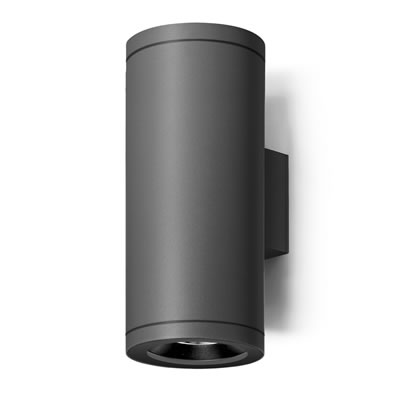

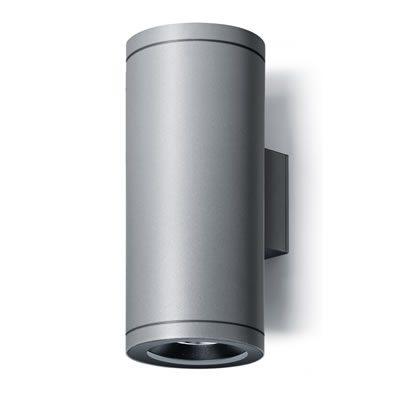

SLOT
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3834N |  |
30° | 31.7W | 2611lm | COB 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .14.24 |
| S.3834W | |
30° | 31.7W | 2537lm | COB 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .14.24 |
| S.3834H | |
30° | 31.7W | 2410lm | COB 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .14.24 |
Colours on request with surchage: .01.07.09.20
SLOT UP-DOWN
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3835N |  |
30° | 61.7W | 5222lm | COB 4000K CRI 80 | 220-240Vac | DALI; DALI2; PUSH | .14.24 |
| S.3835W | |
30° | 61.7W | 5073lm | COB 3000K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .14.24 |
| S.3835H | |
30° | 61.7W | 4820lm | COB 2700K CRI 90 | 220-240Vac | DALI; DALI2; PUSH | .14.24 |
Colours on request with surchage: .01.07.09.20
The range
SLOT ROUND is available in different versions and applications.
Access to the code list of the type of your interest.
Access to the code list of the type of your interest.
Wall mounted
Ceiling surface mounted
